AUTOMATIC TRANSFER SYSTEM

Automatic Transfer System

Operation Mode: Automatic / Auto-Manual combination

Current Rating: 30 A – 400A

Operating Voltage: Single Phase – 240V AC 50Hz, Three phase – 415V AC 1.50Hz

Contact Material: Ag Alloy

Connector Type:

Terminal Block: DMC

Terminal Connector: Silver plated Brass Connector

About This Product

Intelligent Use of Normal and Emergency Power

Getron Automatic Transfer Systems are designed for smart and precise utilization of both normal and emergency power supplies. They are widely used in high-rise apartments, commercial complexes, bungalows, and industrial installations where controlled backup power distribution is essential.

Advanced ACCL-Based Load Distribution

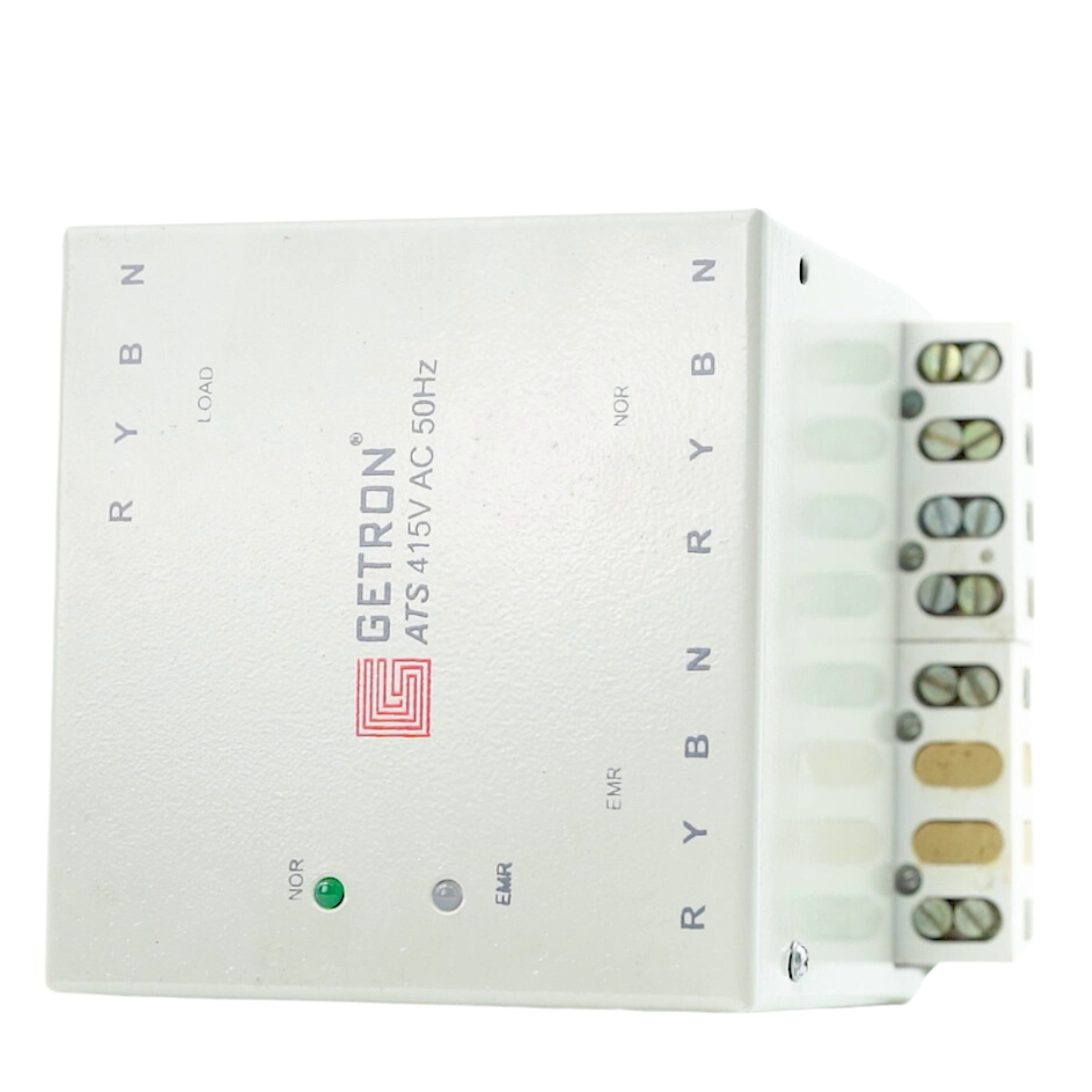

Select models operate on a 415V AC, 50Hz, four-pole configuration with an inbuilt current limiter and 1-in, 3-out architecture. This design allows single-phase emergency power (light and power) to be distributed across a three-phase outgoing network. Emergency power can be used on one, two, or all three phases, provided the total load remains within the rated limit.

Multiple Configurations for Different Power Needs

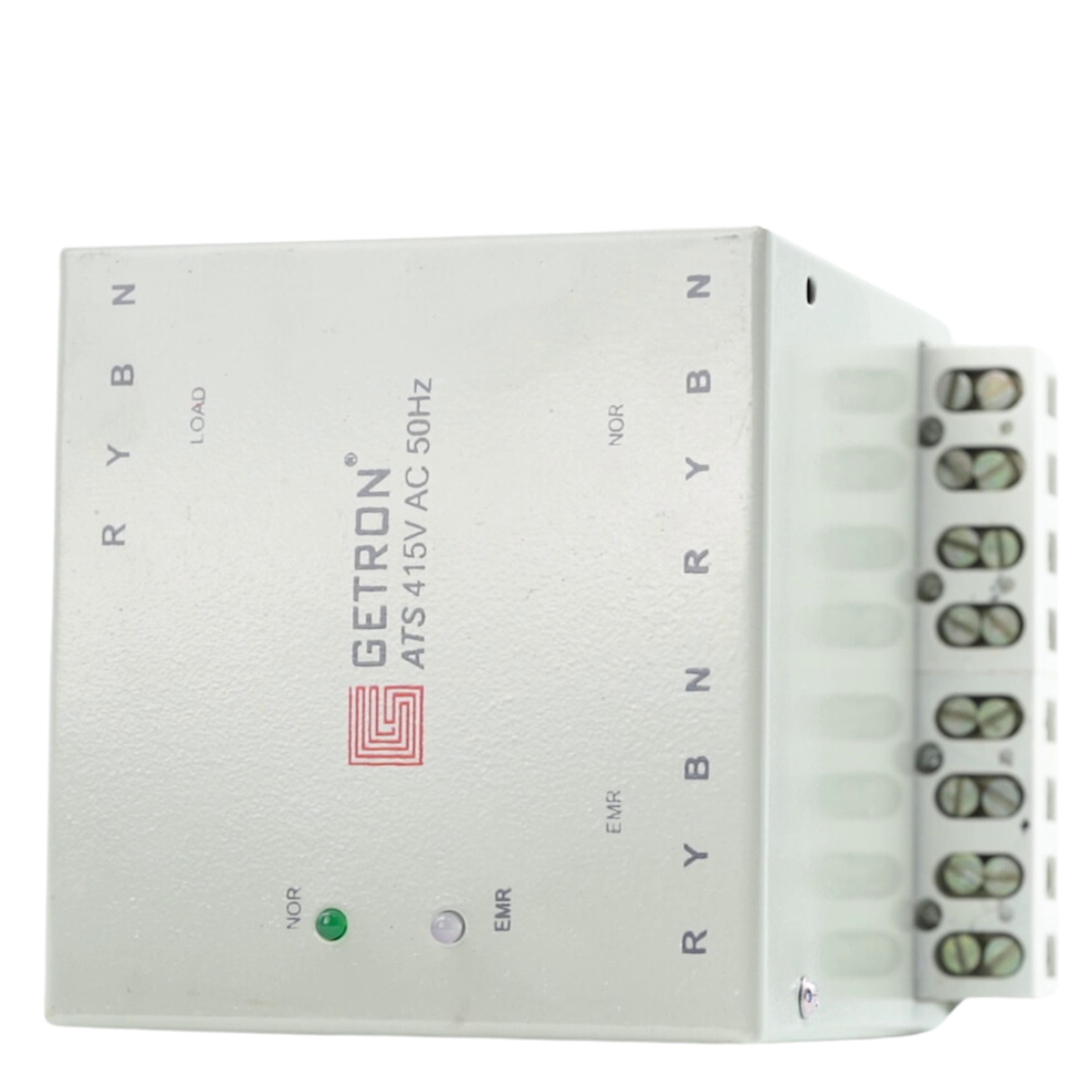

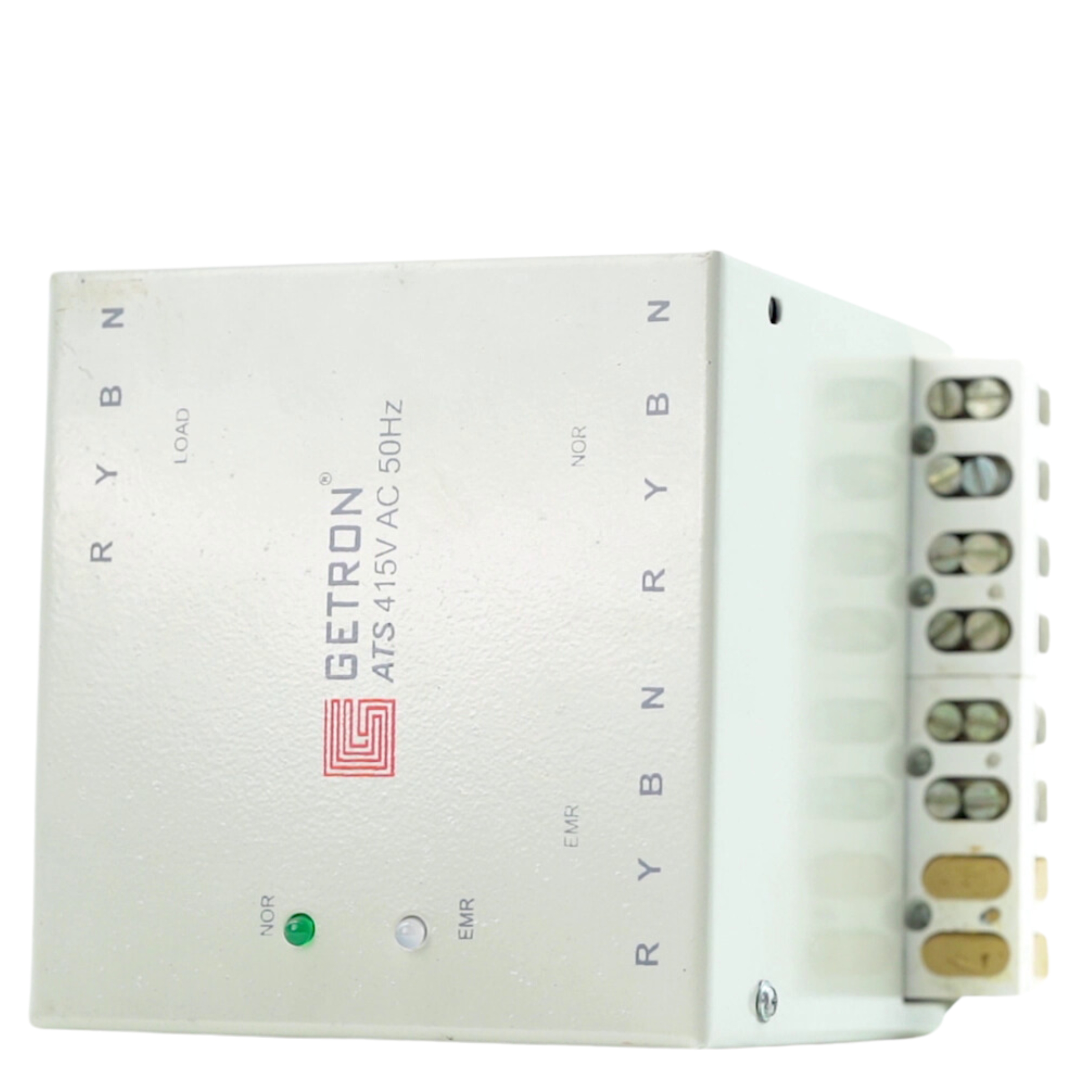

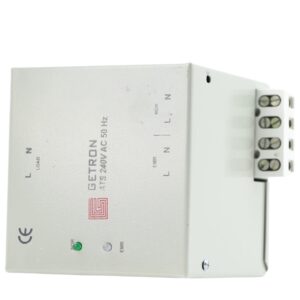

The ATS range includes 1-in-1-out, 1-in-3-out, and 3-in-3-out configurations, along with single-phase double-pole models. Available contact ratings range from 25 Amps up to 80 Amps, offering flexibility for both small and large installations.
