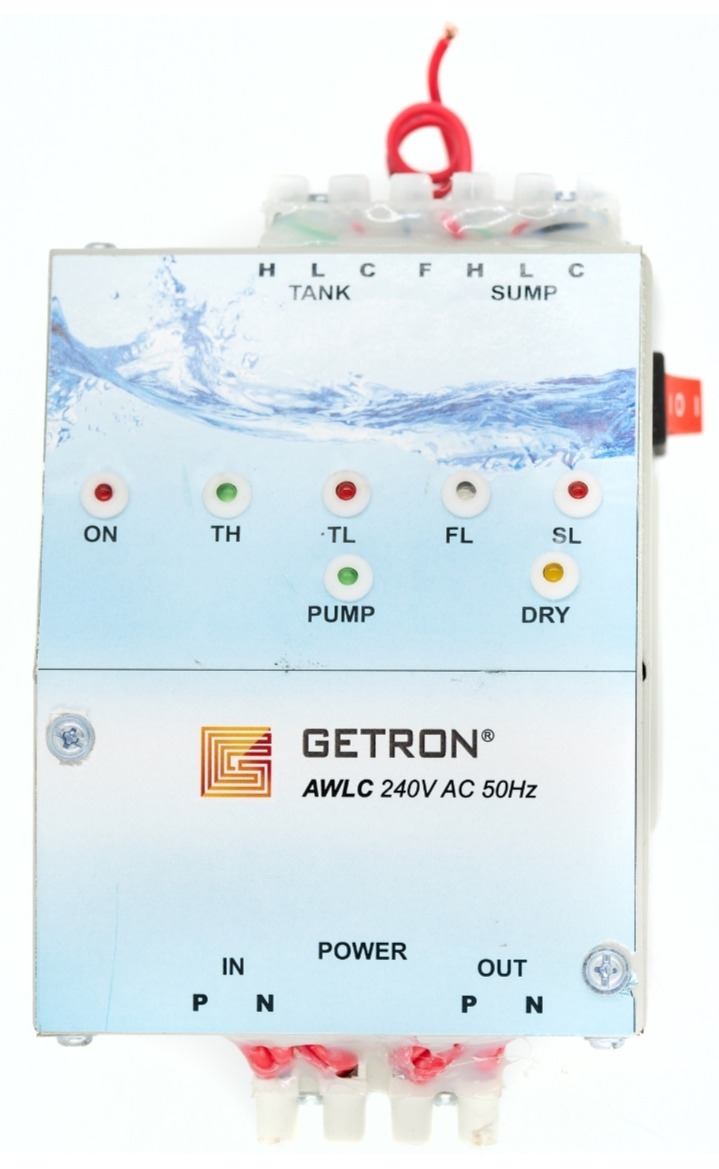

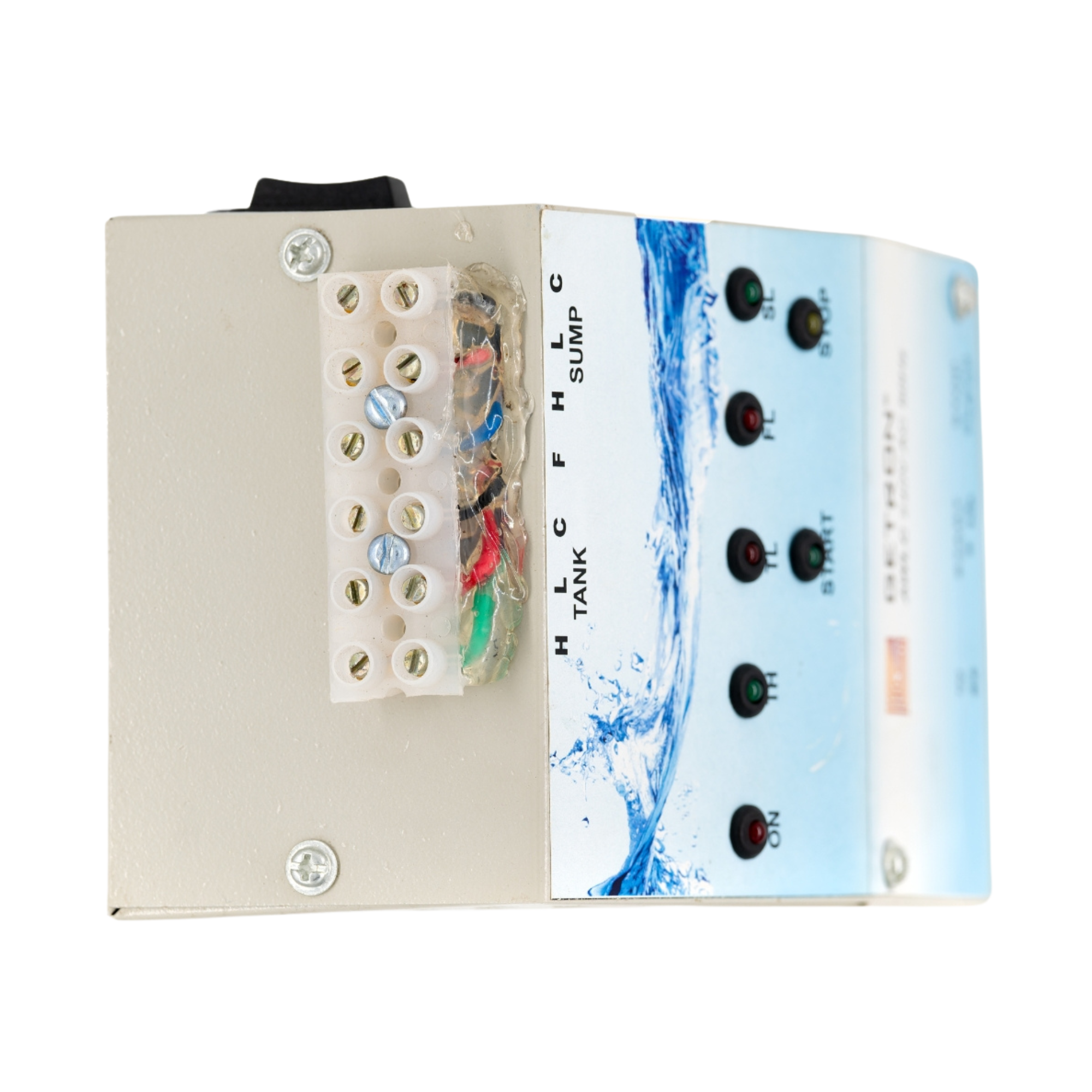

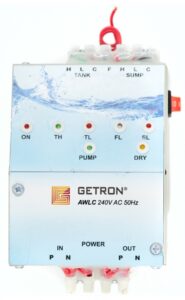

Automatic Water Level Controller
Operation Mode: Automatic / manual
Current Rating: 30 A
Operating Voltage: 240V AC, 50Hz
Contact Type: Normally Open
Connector Type: Silver-plated brass connector
About This Product
Automatic Transfer System for Normal and Emergency Supply
This Automatic Transfer System is designed to automatically transfer electrical load between normal mains supply and emergency generator supply during power failure. It ensures continuity of essential power without manual intervention and is suitable for installations requiring reliable and controlled backup operation.
ACCL-Based Controlled Load Distribution
The system operates on a 415V AC, 50Hz, four-pole configuration with an inbuilt current limiter, commonly used in ACCL applications. It enables distribution of limited single-phase emergency power across a three-phase outgoing network while ensuring the total connected load remains within permissible limits.
Multiple Configurations for Diverse Installation Requirements
Available in 1-in-1-out, 1-in-3-out, and 3-in-3-out configurations with contact ratings ranging from 25 Amps to 80 Amps. The wide range of models allows flexibility in selection based on load requirements, generator capacity, and site-specific power distribution needs.
The ATS range includes 1-in-1-out, 1-in-3-out, and 3-in-3-out configurations, along with single-phase double-pole models. Available contact ratings range from 25 Amps up to 80 Amps, offering flexibility for both small and large installations.
Variants
Application Area
1. Used in high rise residential apartments with centralized generator power backup systems
2. Suitable for common area power supply including lifts, staircases, corridors and pumps
3. Applied in residential complexes requiring controlled emergency power distribution systems
4. Used in commercial complexes with selective backup power during electricity failures
5. Suitable for bungalows and individual houses using limited generator power capacity
6. Applied in industrial premises for auxiliary lighting and essential power requirements
